HVAC-Calc Residential - Adding the Wall to the Living Room

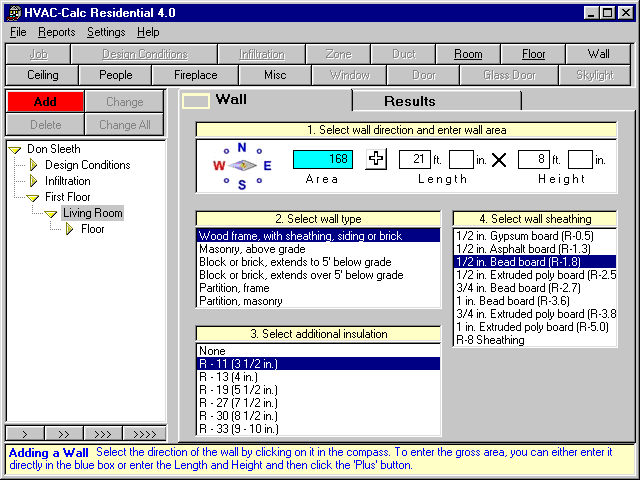

With HVAC-Calc, you just follow the numbered steps. First we clicked on the W in the compass for West, then we entered the length and the height. Since this wall is 2 X 4 construction we select "Wood Frame, R-11 and 1/2 in bead board.

That is all there is to adding a Wall, now we click on Add

Next we will add a window to the west wall. Next Screen on tour.
